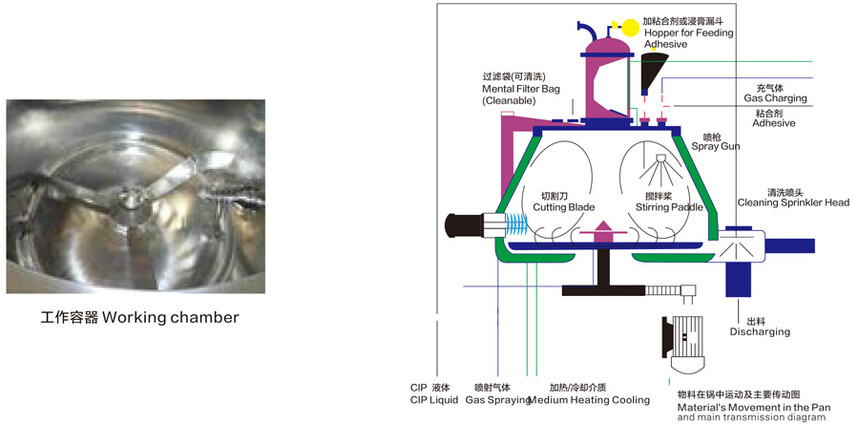

Principles:

The powder raw material and adhesive in a cylinder are mixed fully at the bottom to turn into a humid soft material. Then it is crushed at a high speed and become uniform granules.

Features of equipment.

Features:

• The machine adopts horizontal barrel(cone) structure. Its structure is reasonable.

• The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.

• Short granulating time, high efficiency and energy saving

• The character of granule is uniform and the fluidization of granule is good. It provides ideal granule material to tablet pressing procedure.

• Compared with traditional process, it can reduce 25% of binder and shorten drying time too.

• Each batch needs 2 minutes to dry mixing and 1-4 minutes to granulating. Compared with traditional process, its efficiency can raise 4-5 times.

• Whole operation has strict safe protective measures.

It can mix uniformly even when the gravity difference between main material and excipient is very big, without the phenomenon of delamination.

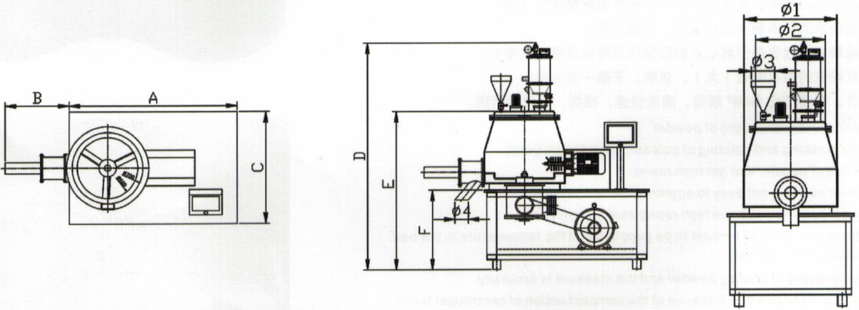

Technical parameter:
