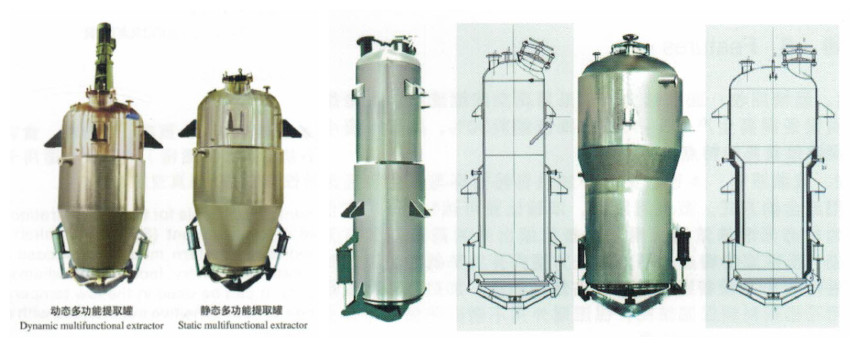

Applications

The equipment is applicable for the multiple technology operation of normal pressure, micro pressure, water frying, warm soaking，

thermal reflux,compulsory circulation, filtration, redolent oil extraction and organically solvent recycling in traditional Chinese medicine,

food and chemical industry.The prominent characteristics of the large and back taper type extracting tank is that the slagging is very

 convenient with good heating effect.The tank body is equipped with CIP cleaning rotary spraying ball head,temperature measuring

hole, explosion-proof view lamp, view mirror, rapid open feeding inlet etc., which can guarantee the convenient operation and is in

accordance with cGMP standard. The tank body inside the equipment is made of imported SUS304, and the jacket is made of

 completely sealed aluminum silicate blanket for temperature holding.The external tank body is stuck with SUS304 semi-luster thin

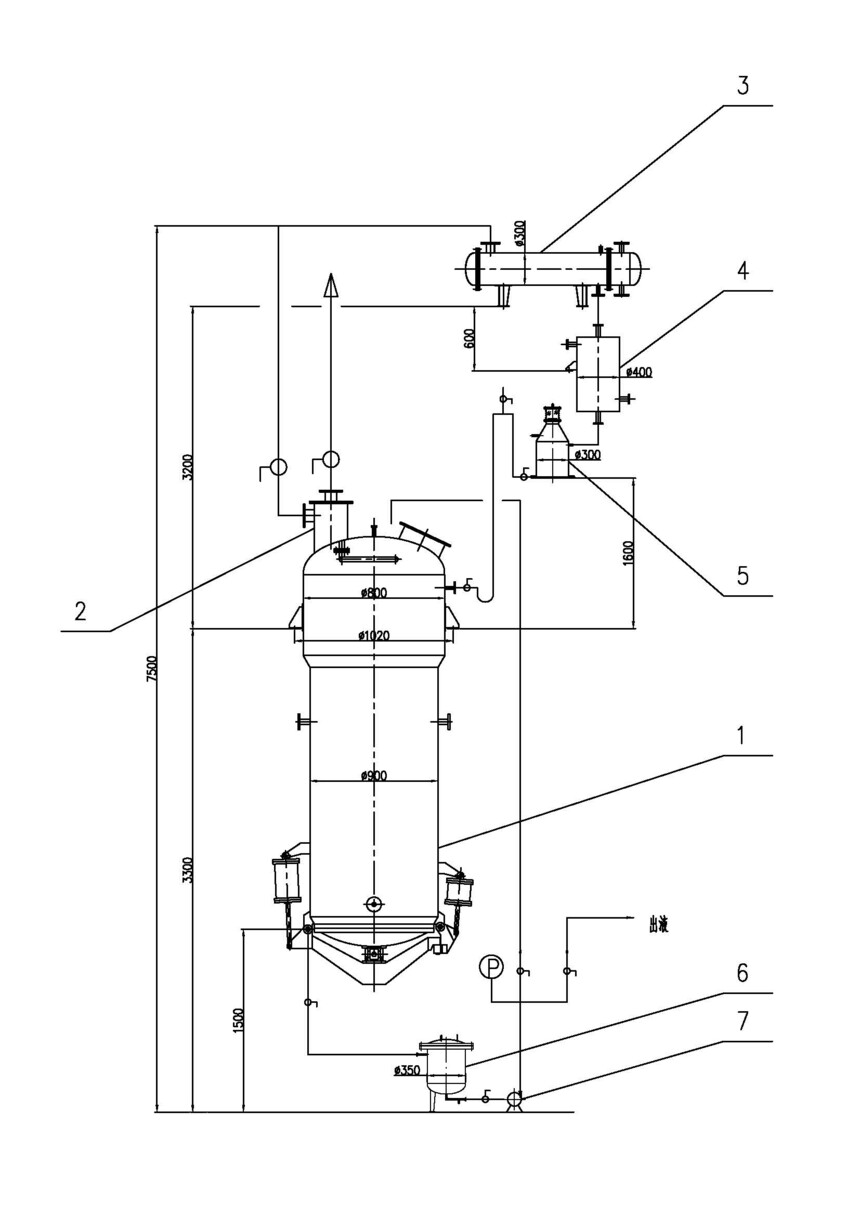

steel sheet for surface decoration. The complete equipment supplied shall include: Defoamer, condenser, cooler, oil and water

 separator, filter and control desk for cylinder etc. Accessories.

Technical parameters
