Descriptions

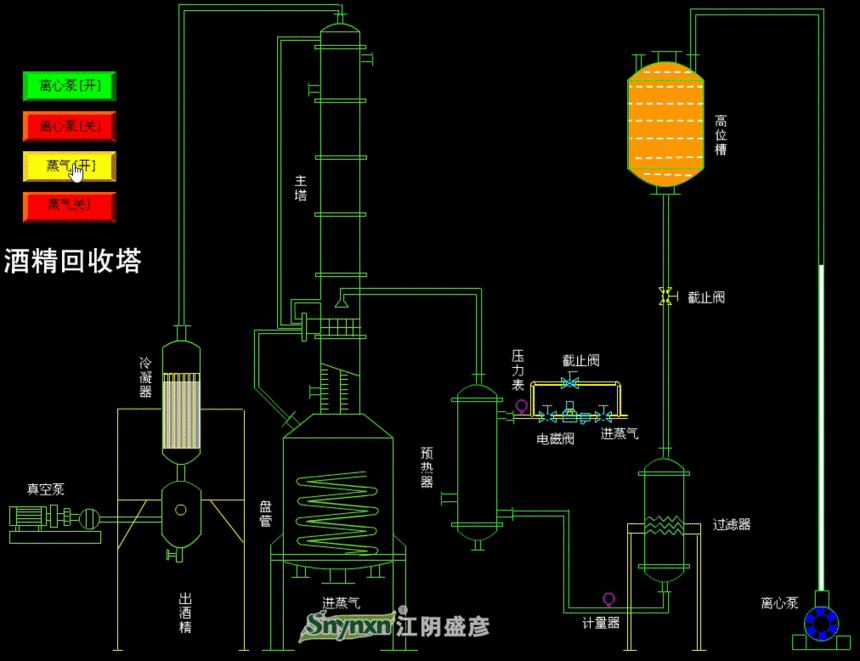

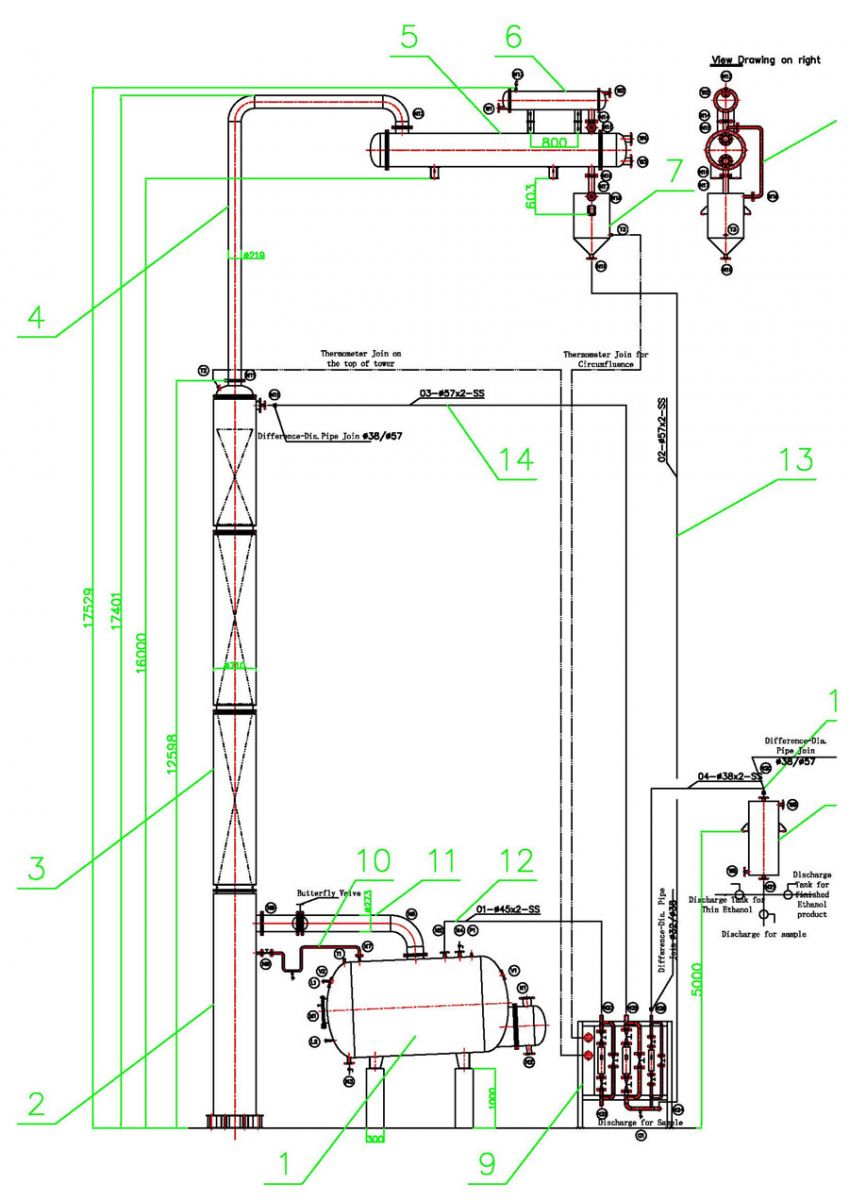

The main equipment of refined distillation device for ethanol is tower. The equipment uses the principle that the boiling point of ethanol

is lower than that of water and their solution. It applies the temperature that is higher than the boiling point of ethanol slightly to heat and

 vaporize dilute solution to be recovered. The steam of high Concentrated ethanol is vaporized distillation tower and than cooled and

 recovered by condenser. In this way, ethanol that is in conformity with the requirement is got.

Principles

The main parts of equipment are made from stainless steel. It is corrosion resistant and durable. The quality of ethanol can be guaranteed.

The equipment can be operated continuous. The operation is very simple and easy maintenance. The concentration of finish product is

constant, It is suitable for recovering dilute ethanol with different concentration.

Applications

The device is suitable for recovering dilute ethanol of pharmaceutical industry, foodstuff industry, light industry, chemical industry and so on.

It is also suitable for distilling solvents such as methanol and so on. Using this device, about 30% of dilute ethanol can be distilled into 90-95°

as request. If the finished product has higher requirement to alcohol content, the ratio of reflex should be increased. But the output will be decreased.

Features

● Concentration of raw materials to be fed in: 30-80%
● Ratio of reflex: R=13(affirmed in accordance with the concentration of raw material to be fed in and taken out)
● Concentration of ethanol in residual liquid to be discharged: model DT type^3%
● Product capacity(kg/h): see the list of productive capacity.

Technical parameters
