LD Series Pharma Bin

Telephone: 13961601352

Product

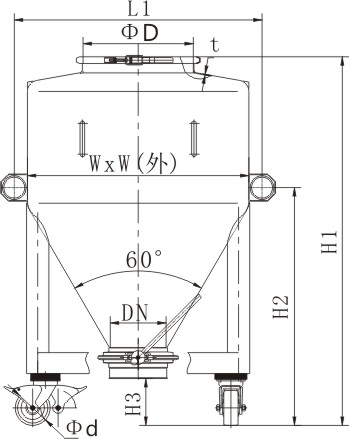

LDZ series pharma bin

Model	Volume(L)	Main structural dimensions
Model	Volume(L)	H1	H2	H3	φd	W	DN
LDZ-300	300	1118	960	138	125	794	200
LDZ-400	400	1287	1130	165	125	794	200
LDZ-600	600	1366	1200	151	125	994	200
LDZ-800	800	1545	1375	118	125	994	200
LDZ-1000	1000	1586	1400	168	150	1194	250
LDZ-1200	1200	1736	1550	181	150	1194	250
LDZ-1500	1500	1868	1680	99	150	1194	250
LDZ-1800	1800	1982	1800	141	150	1194	250
LDZ-2000	2000	2238	2055	113	150	1194	250

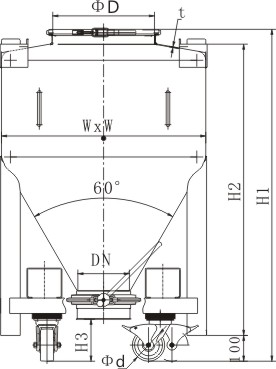

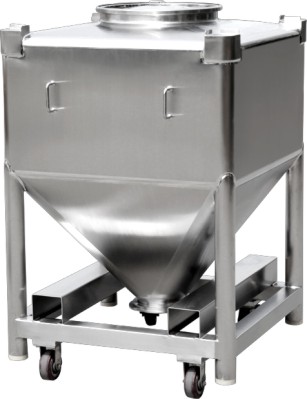

LDT pharma bin

Model	Volume(L)	Main structural dimensions
Model	Volume(L)	H1	H2	H3	W	φD	W1	DN
LDT-50	50	714	500	130	630	200	394	150
LDT-100	100	910	550	204	630	400	544	150
LDT-200	200	946	700	100	770	400	694	200
LDT-300	300	1258	800	180	788	400	694	200
LDT-400	400	1318	850	166	888	400	794	200
LDT-600	600	1475	950	163	988	500	894	200
LDT-800	800	1508	1000	141	1088	500	994	200
LDT-1000	1000	1672	1050	125	1210	500	1094	250

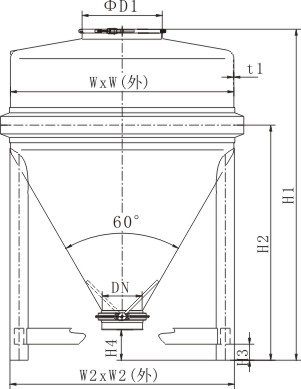

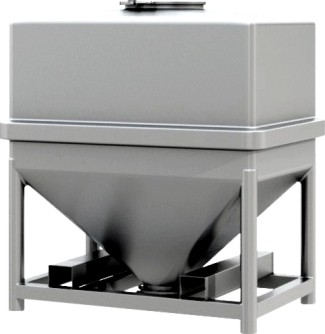

LDY pharma bin

Model	Volume(L)	Main structural dimensions
Model	Volume(L)	H1	H2	H3	H4	φD	W1	W2	DN
LDY-500	500	1280	920	185	100	500	894	900	200
LDY-600	600	1416	920	185	100	500	894	900	200
LDY-800	800	1532	970	185	100	500	994	1000	200
LDY-1000	1000	1674	1070	185	125	500	1094	1100	250
LDY-1200	1200	1686	1170	211	131	500	1194	1200	250
LDY-1500	1500	1873	1170	211	99	500	1194	1200	250
LDY-1800	1800	1968	1250	211	103	500	1294	1300	250
LDY-2000	2000	2046	1470	100	190	500	1400	1406	250
LDY-2500	2500	2211	1350	100	70	500	1400	1406	250
LDY-3000	3000	2402	1470	100	140	500	1494	1500	250
LDY-3500	3500	2570	1570	120	140	500	1600	1606	250
LDY-4000	4000	2770	1650	120	140	500	1600	1606	250
