XL & XYZL Rotating Granulator

Product overview

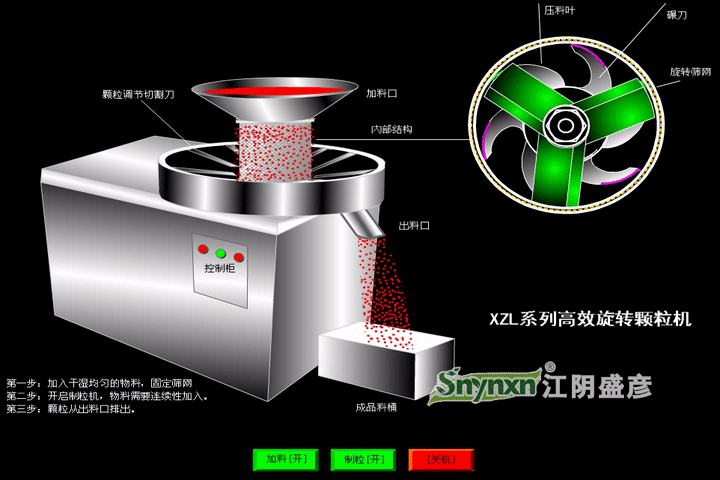

This machine adopts one pair of rotating grinding blade to grind form damp material into column-shape granule by stainless steel sieve cylinder which is provided for pelletize in next process.The machine can obtain different size granule by changing the stainless steel sieve

Telephone: 13961601352

Product

Descriptions

This machine adopts one pair of rotating grinding blade to grind form damp material into column-shape granule by stainless steel sieve cylinder which

is provided for pelletize in next process.
The machine can obtain different size granule by changing the stainless steel sieve

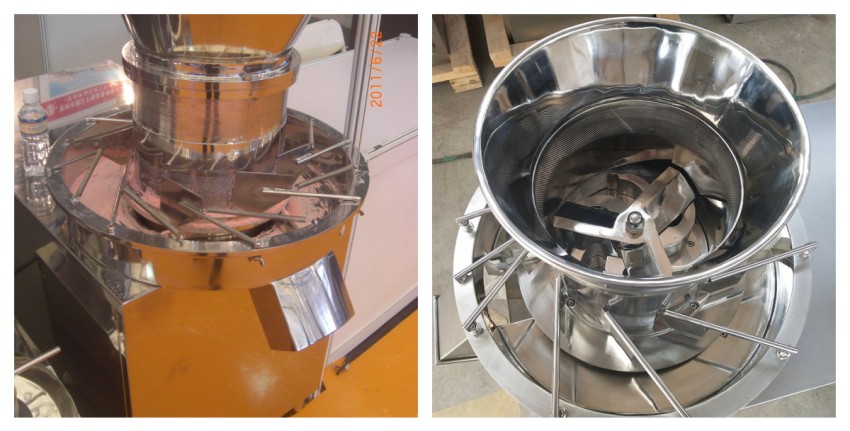

XL Model:

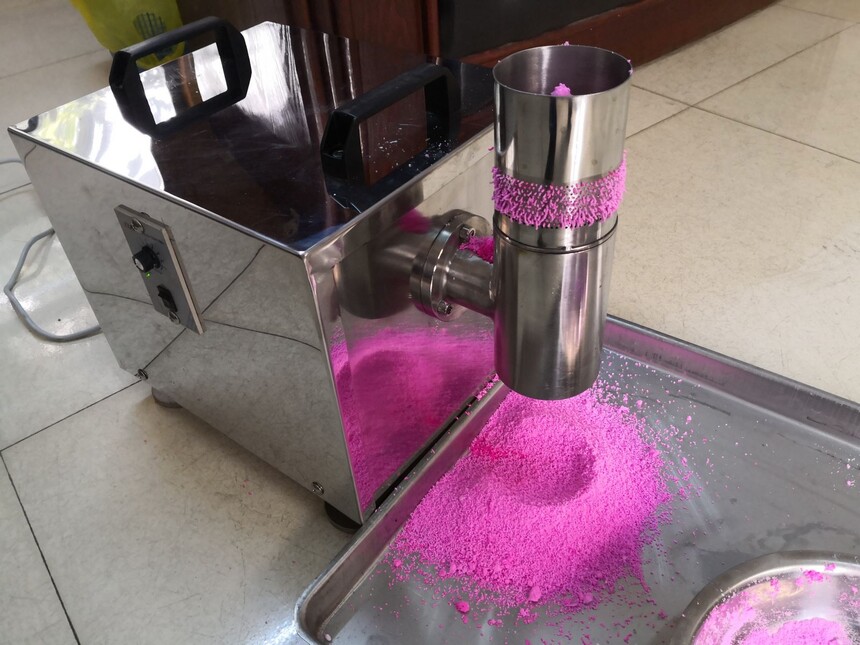

Lab Model:

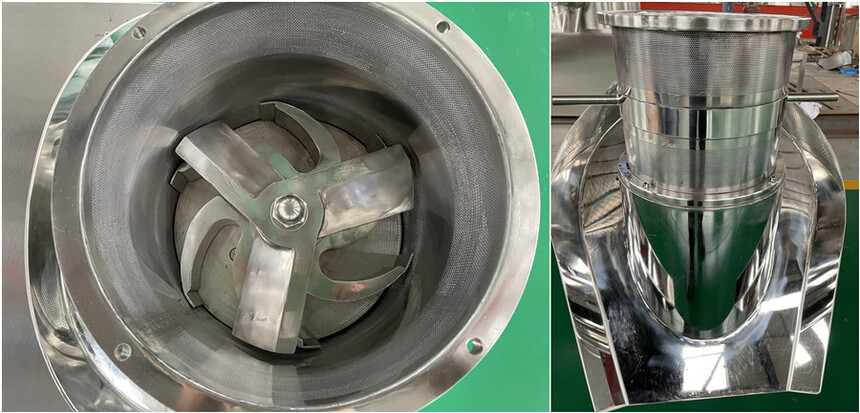

XYZL Model:

Technical parameters

Diameter of cylinder (mm)	Diameter of sieve (mm)	Production capacity (kg/h)	Power of motor (kw)	Overall dimensions (L×W×H) (mm)
250	φ0.8-2.5	60-200	4	700×500×1230
300	φ0.8-2.5	100-300	5.5	880×630×1230
450	φ0.8-2.5	200-500	7.5	1080×730×1330
