Descriptions

XSG series roating flash dryer is developed by our company, and itstechinology is based on advanced techinology adored. The machineincludes

many superiority, such as reasonable design, compactstuction, widly utilization, great productive capacity ,good quality, higheffect and save energy,

Drying, grinding and sieve are completed inone equipment in once time. It eliminates pollution and the techinology is reached international advance

 level. Flash drying machine has theoriginal bearing induction cooling (water cooling), oil pump design withconnection to send oil lubrication, cooling

the bearing, sea I performance, on the spindle design USES a half ring, motor usingspeed regulation, smooth transmission, low noise, the service

life is tentimes of similar products.

Principle of work

The hot air enters the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind field is formed.The paste

 state materials enter into the drier through the screw charger. Under the powerful function of the stirring vanes at high-speed rotation, the materials

 are distributed under the function of strike, friction and shearing force. The block state mate-rials will soon be smashed and contact the hot air fully

 and the materials are heated and dried. The dried materials after the dewatering will g o up with the heatair flow. The step rings will stop and keep

the big particles. Small particles will be discharged out of the drier from the ring center and will be restored by the whirl separator and dust remover.

The not-fully-dried or big piece materials will be sent to the wall of the equipment by centrifugal force function and be smashed again after they fall

down to the bottom.

Features

◆This machine combines the whirl technology with the luidity, ejection and smashing step technologies.
◆The equipment is compact and small in size , high in production efficiency and continuous in the production. It has realized that aa small equipment

 can perform the large production” .
◆The drying capacity for this machine is big but its energy consumption is low. Its heat efficiency can go up to more than 70%.
◆The material stay time is very short. The quality of the final products is very good. The machine can be used for drying the heat sensitive materials.
◆For the negative pressure or the micro-negative pressureoperation, the machine is goog for its tightness and high in the efficiency so as to eliminate

 the environmental pollution.

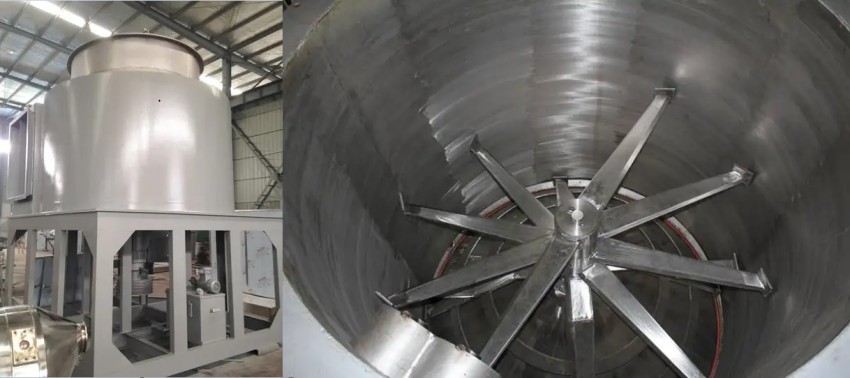

Crusher structure

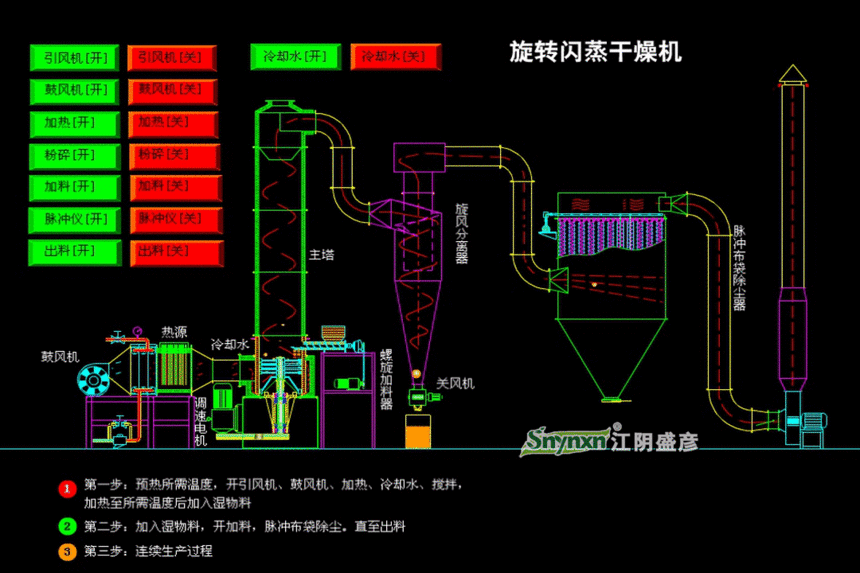

Sketch of structure

Technical Parameter
