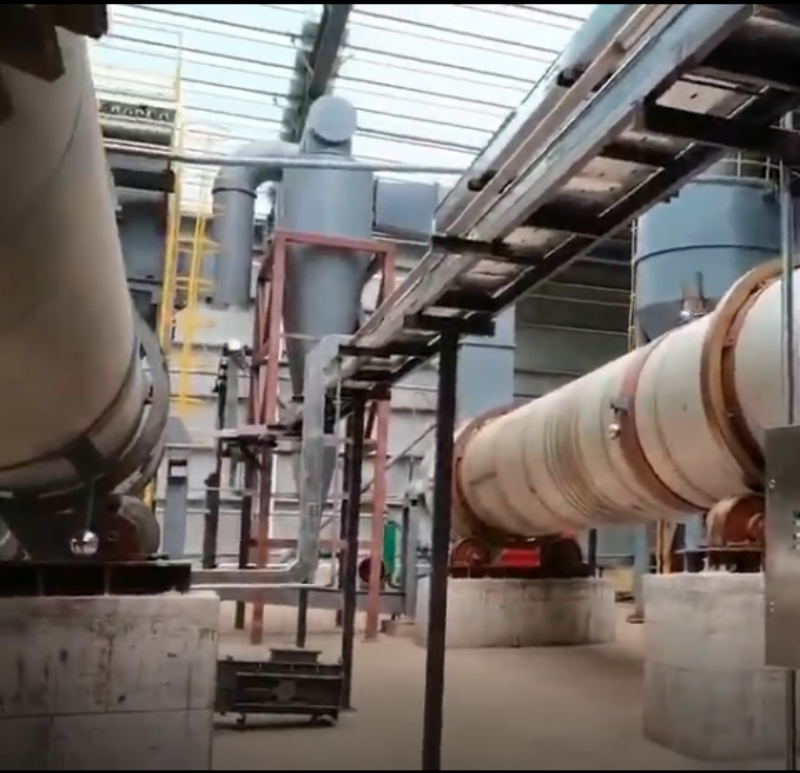

HG Rotary Drum Dryer

Product overview

HG type rotary drum dryer is a kind of drying epuipment with large handle capacity and can for continuous production.lt consists of heat system, feeding device, rotary drum，driving device, discharge part and dust catcher etc.This dryer have a big capability with wide application, and With small flow resistance, permit wide scope in operation, and easy to operate, humidity of product can less than 1% after drying.

Telephone: 13961601352

Product

Descriptions

♦ HG type rotary drum dryer is a kind of drying epuipment with large handle capacity and can for continuous production.lt consists of heat

system, feeding device, rotary drum，driving device, discharge part and dust catcher etc.
♦ This dryer have a big capability with wide application, and With small flow resistance, permit wide scope in operation, and easy to operate,

humidity of product can less than 1% after drying.

Application

Applicable to powder, particle, piece and paste material in chemical, metallurgy, architectural material and light industry.In chemical industry,

it can used to dry harmonium sulfide, alkali sulfide, ammonium nitrate, urea, ethane diacid, potassium dichromate, PVC, manganese dioxide

calcium carbonate, nitric phosphate, calcium-magnesia phosphate , III sodium fertilizer, Phosphate rock, normal superphosphate, concentrated

superphosphate, sodium sesquicarbonate, III sodium Polyphosphate etc.

Features

♦ Heed large quantity of material for drying.
♦ Level of mechanization is high, and capacity is large.
♦ The resistance for fluid to pass through drum is low, and energy consumption is low.
♦ Good adaptability to the characters of materials.
♦ Operation is stable, operating cost is low. Uniformity of dried product is good.

Technical Parameter

Item(m}	Productive capacity(t/h)	Revolution(r/min)	Motor power(kw)	Install angle(°)	Temp.of final
φ1.0×5.0	0.5-1.2	0.6-6	4	3-5	≤1.5%
φ1.2×6-10	1.5-3	0.6-6	5.5	3-5	≤1.5%
φ1.5×12-18	3-5.5	0.6-6	15	3-5	≤1.5%
φ1.8×12-18	5-6.5	0.6-6	18.5	3-5	≤1.5%
φ2.2×12-22	7-12	0.6-6	22	3-5	≤1.5%
φ2.4×15-20	9-15	0.6-6	30	3-5	≤1.5%
φ3.0×25	16	0.6-6	55	3-5	≤1.5%

Model	direct heating clockwise way		direct heating counterclockwise way		compound heating	compound heating
Kinds of raw material	Ore	HP vesicant	Slag of blast furnace	Ammonium sulphate	Phosphorus fertilizer	Coal
Amount to be treated(kg/h)	1000	466	15000	20000	12000	5000
Primary moisture (%)	30	13	6	1.5	5	6.5
Final moisture (%)	15	0.3	1	0.1	0.1	0.1
Average diameter(mm)	6.5	0.05	4.7	0.5-0.7	0.5	5
Thickness of raw material(kg/m3)	770	800	1890	1100	1500	750
Amount of hot air (m3/kg)	39000	5400	10750	9800	6500	16000
Temperature of air at inlet (°C)	600	165	500	180	650	570
Temperature of raw material at outlet (°C)		42	100	70	80	75
Way of heating	Gas	Steam,electric heating	Heavy oil	coal fuel hot air furnace	Heavy oil	Heavy oil
Filling confficient		6.3	7	7.5	7.8	18
Revolution (r.p.m)	4	4	3.5	3	4	2
Gradient (m/m)	0.04	0.005	0.03	0.05	0.05	0.043
Quantity of stirring-up rake	9 12	24	12	22	Outer of inner cylinder8	Outer of inner cylinder6
	9 12	24	12	22	Inner of outer cylinder16	Inner of outer cylinder12
	2	1.5	2	2.3
diameter of dryer (m)					Outer of inner cylinder2	Outer of inner cylinder2.4

					Inner of outer cylinder0.84	Inner of outer cylinder0.96
Length of dryer (m)	20	12	17	15	10	16
Driving Power (kw)	22	7.5	15	11	11	15
