HOME >> PRODUCT CENTER >>Mixing Equipment >> SYH Multi-direction Movement Mixer
详细说明

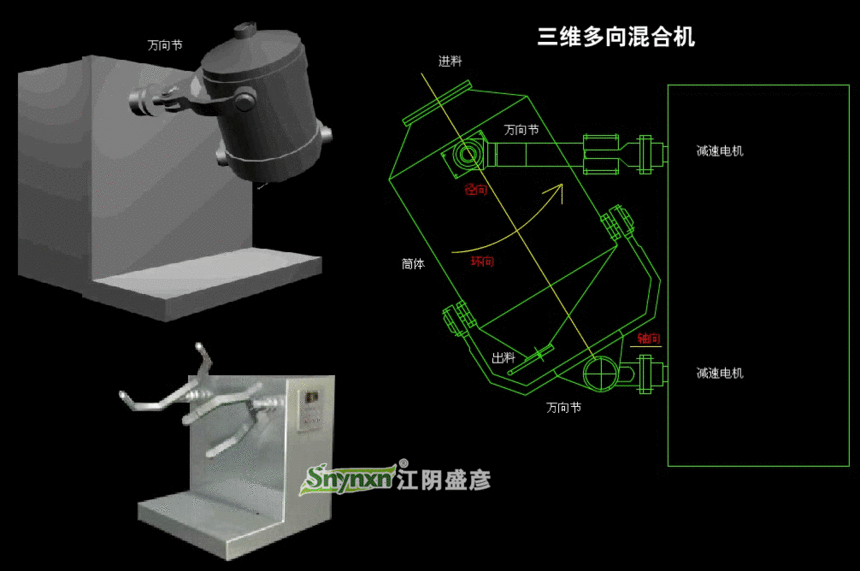

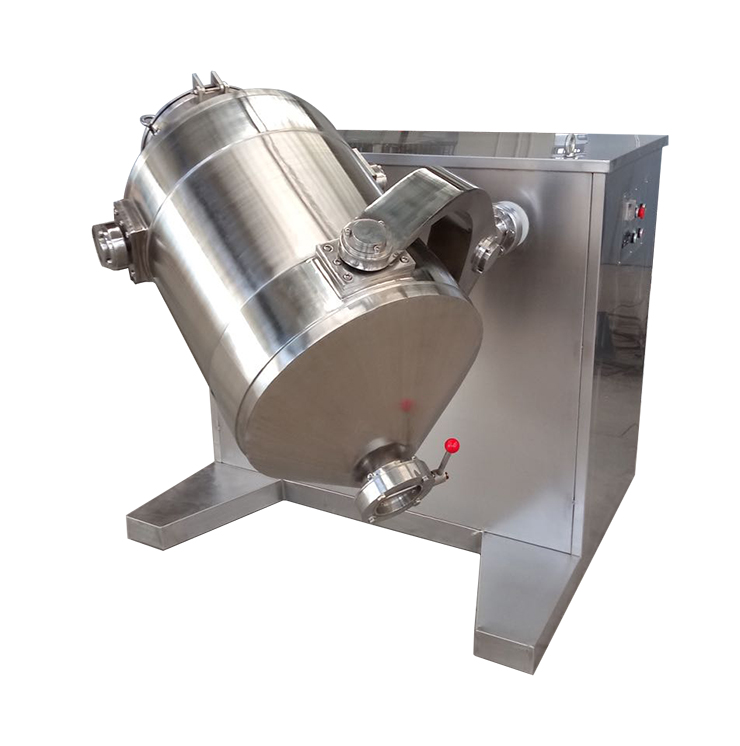

SYH Multi-direction Movement Mixer

Product overview


Because the mixing drum has multi directional motion, it makes raw material inside the drum has many cross-mixing points, therefore the mixing effect is good. Its degree of uniformity may be over 99.9%. Its Max loading efficiency may be 0.9 (The loading efficiency of ordinary mixer is 0.4~0.6). Its mixing time is short and its efficiency is high.

Telephone
13961601352
收藏
  • Product


Features

Because the mixing drum has multi directional motion, it makes raw material inside the drum has many cross-mixing points, therefore the

mixing effect is good. Its degree of uniformity may be over 99.9%. Its Max loading efficiency may be 0.9 (The loading efficiency of ordinary

 mixer is 0.4~0.6). Its mixing time is short and its efficiency is high.
The design of mixing drum is unique. Its inner wall is polished finely. Its advantages are no dead corner, no pollution to raw material, convenient

in discharge, easy in clean and so on.



Technical parameters

typeSYH-5SYH-100SYH-200SYH-400SYH-600SYH-800SYH-1000SYH-1500
Material barrel volume (L)510020040060080010001500
Max loading volume (L)4801503004506007501200
Max loading weight (kg)380150200300400500750
Spindle rotation speed (r/min)2415121010101010
Motor power (kw)0.372.2345.57.51111
外形型尺寸600×10001200×18001300×16001500×2200 ×15001850×2500 ×16501900×2400 ×21001950×2500 ×24002600×2500 ×2350
Overall dimensions (mm)×1000×1500×1500
Weight (kg)15050075012001500165018002500

0a82d79f0cd8b2c62f6cb38aa13e08f8_%E4%B8%89%E7%BB%B4%E6%B7%B7%E5%90%88%E6%9C%BA(1).gif
