HOME >> PRODUCT CENTER >>Mixing Equipment >> LCH Vertical High Speed Mixer
详细说明

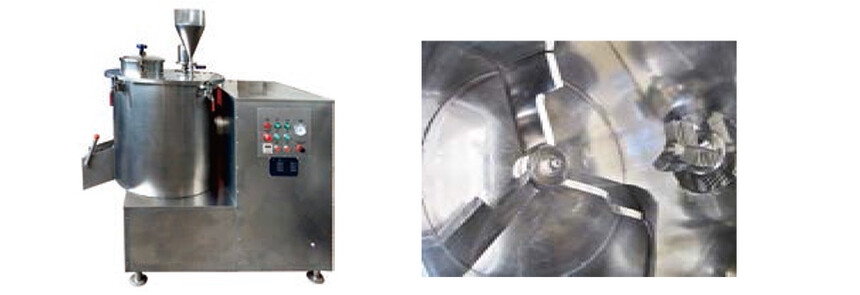

LCH Vertical High Speed Mixer

Product overview


LCH type high speed mixer is designed for powder mixing and the development of high efficient mixing machine equipment, solved the food, pharmaceutical and other industries for many years will be all kinds of powder mixed into the process of water wet material.

Telephone
13961601352
收藏
  • Product


Descriptions

LCH type high speed mixer is designed for powder mixing and the development of high efficient mixing machine

equipment, solved the food, pharmaceutical and other industries for many years will be all kinds of powder mixed

 into the process of water wet material.
The LCH type high speed mixing machine is a set of efficient mixing machine of domestic and foreign advanced

 technology and the latest development, solves the difficult problem of powder material mixed with other mixing

 devices, to achieve the effect of the mixed.
One, mixing evenly, can't find a small group and small;
Two, short mixing time, mixing time 150 kilograms powder only 3-4 minutes;
Three, feeding, feeding is very convenient, when feeding the raw materials, small material, one-time add water,

and then cover the lid according to the set time started to stir. Discharge when pulling out the inserting plate,

starting point can make the material completely released. So the operation is simple and sanitary, no hands to

contact materials;
Four, cleaning is simple, as long as the water into the hopper, starting rotation, and then spit out the water, can

 be washed clean;
Five,The sealing structure of five, LCH type vertical high-speed mixing machine through the careful design, reliable

 sealing performance, convenient disassembly and repair, all gear after heat treatment, the service life is long.



Principles

LCH type vertical high-speed mixer by feeding at the bottom of the blade and the broken material of blade. Feeding

 material continuously along the wall at the bottom of the blade will feed up. High-speed broken material from blade

to blade material thoroughly broken material, make the material circulation swirl formation, in a relatively short period

 of time to achieve the purpose of mix material evenly.



Applications

LCH type vertical high-speed mixer applies to different proportions of dry and wet materials mixing, especially suitable

 for infusion of chicken, medicines, drinks and other complex mixing, mixing materials in chicken essence and other

spices, pharmaceutical, chemical raw materials of powder material on the mixing has been widely used.



Technical parameters


ModelWorking volume (L)Stirring capacity (kg/batch)Power (kw)Weight (kg)Overall size (mm)



(Main power+cutting power)

LCH-30030060-1007.74001500×1090×1200
LCH-500500100-15010.56001500×1090×1300
LCH-800800150-250158001718×1320×1400


Notes:The output listed in the table is for reference only because of the difference of the specific gravity and mesh.
