HOME >> PRODUCT CENTER >>Mixing Equipment >> CH Slot Mixer
详细说明

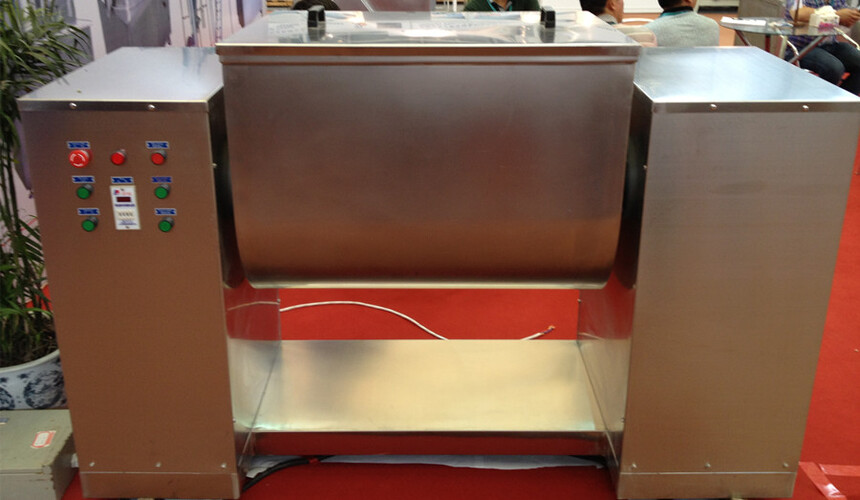

CH Slot Mixer

Product overview


It is used for mixing powder or wet material, so that different proportion of main and auxiliary materials can be mixed evenly. The machine is made of stainless steel in contact with the material. The clearance between the blade and the barrel body is small.


Telephone
13961601352
收藏
  • Product


Descriptions

It is used for mixing powder or wet material, so that different proportion of main and auxiliary materials can be mixed evenly. The

machine is made of stainless steel in contact with the material. The clearance between the blade and the barrel body is small.

There is no dead angle in mixing. Sealing device is installed at both ends of the stirring shaft to prevent the material from diarrhea.

The hopper is controlled by button and discharging is convenient. It is widely used in pharmaceutical, chemical, food and other industries.



Technical parameters

TypeTotal volume (m3)Feed amount (kg/batch)Overall dimension (mm)stirring speed (rpm)power for mixing(kw)Power for discharge(kw)
1500.15301480×1190×6002430.55
2000.2401480×1200×6002440.55
3000.3601820×1240×6802441.5
5000.51202000×1240×720205.52.2
7500.751502300×1260×800197.52.2
100012702500×1300×860197.53
15001.54002600×1400×94014113
200025503000×1500×116012114
25002.56303500×1620×125012155.5
300037503800×1780×15001018.55.5
