HOME >> PRODUCT CENTER >>Mixing Equipment >> VHJ V-type Mixer
详细说明

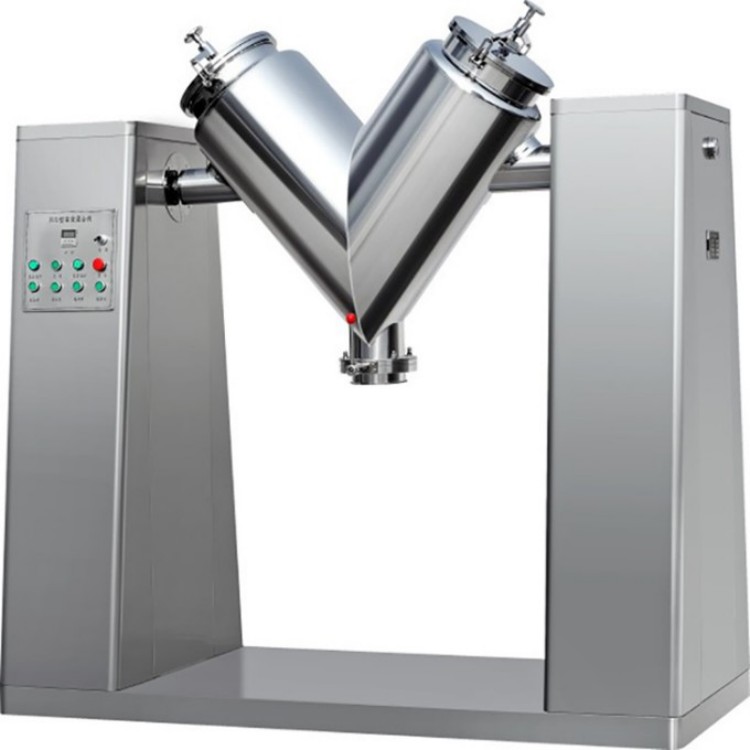

VHJ V-type Mixer

Product overview


This machine is suitable for mixing two or more dry and powder or granule raw materials from pharmaceutical industry, chemical industry, foodstuff industry and so on.The structure of this machine is unique. Its mixing efficiency is high and no dead corner. It is made of stainless steel. Its inner and outer wall is processed through polishing. Its appearance is beauty.Its mixing is uniform. Its scope of application is wide. The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder, cake and certain moisture as request.

Telephone
13961601352
收藏
  • Product


Descriptions

This machine is suitable for mixing two or more dry and powder or granule raw materials from pharmaceutical industry, chemical industry, foodstuff industry and so on.
The structure of this machine is unique. Its mixing efficiency is high and no dead corner. It is made of stainless steel. Its inner and outer wall is processed through polishing. Its appearance is beauty.
Its mixing is uniform. Its scope of application is wide. The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder, cake and certain moisture as request.


Technical parameters

Model and specificationV-0.18V-0.3V-0.5V-1.0V-1.5V-2.0V-2.5V-3.0V-4.0V-5.0V-6.0
Productive capacity (kg/h)7290150300450600800900120015001800
Model of vacuum pumpW2W2W2W3W3W3W3W4W4W4W4
Time of raw material fed in (min)3-53-54-66-96-108-138-158-1210-1515-2018-25
Mixing time (min)4-86-106-106-106-106-106-108-128-128-128-12
Total volume (m3)0.180.30.511.522.53456
Stirring speed (r/min)1212121212121210101010
Power of motor (kw)1.11.11.5345.57.57.5111518.5
Rotating height (mm)15802160236026002800290030003200400045005000
Weight (kg)2803205509501020160020402300280032503850

Notes:all loading coefficient is 0.4~0.6.the productive capacity listed in the table is calculated in accordance with 0.5 of loading coefficient

and 0.8 of raw material density.
